3inch Helical Rotor Solar Power Submersible Pumps
Material of Parts
Outlet: Stainless Stell Pump Body:Stainless Stell
Motor Body:Stainless Stell Bearing: NSK
Helical Rotor & Screw: 316 Stainless Stell

Motor:

Full Oil Permanent Magenet Brushless DC Motor (Without Hall)

Controller: 32bit MCU/FOC/Sine Wave Current/MPPT
Controller Shell: Die-cast Aluminum (IP67)
Time of Warranty: 3 years

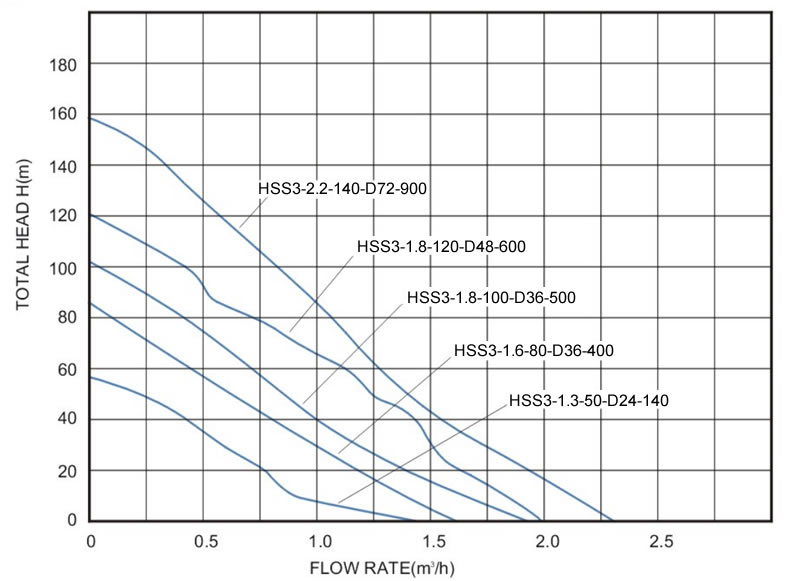

Performance Chart
Model Flow (m3/h) 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2
HSS3-1.3-50-D24-140 Head(m) 58 50 40 25 10 5 0
HSS3-1.6-80-D36-400 85 70 60 50 40 30 20 10
HSS3-1.8-100-D36-500 103 90 80 70 50 40 30 20 10 0
HSS3-1.8-120-D48-600 121 110 100 85 75 60 50 35 20 10 0
HSS3-2.2-140-D72-900 157 140 130 110 90 80 60 40 30 20 10 0
Pump Performance

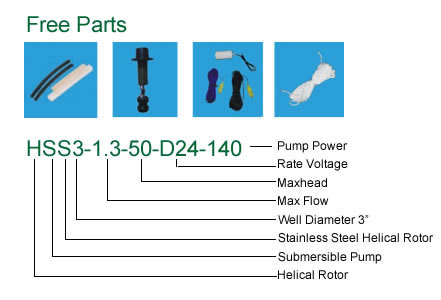

Model Power Voltage Voltage Range Max Flow Max Head Outlet Outline
HSS3-1.3-50-D24-140 140W 24 VDC 17-50 VDC 1.3 m3/h 55 M 0.75 3 in
HSS3-1.6-80-D36-400 400W 36 VDC 20-68 VDC 1.6 m3/h 80 M 0.75 3 in
HSS3-1.8-100-D36-500 500W 36 VDC 20-68 VDC 1.8 m3/h 100 M 0.75 3 in
HSS3-1.8-120-D48-600 600W 48 VDC 36-80 VDC 1.8 m3/h 120 M 0.75 3 in
HSS3-2.2-140-D72-900 900W 72 VDC 46-100 VDC 2.2 m3/h 140 M 0.75 3 in
