4inch Centrifugal Solar Power Submersible Pumps
Material of Parts
Outlet: 304 Stainless Stell Pump Body:304 Stainless Stell
Motor Body:304 Stainless Stell Bearing: NSK
Impeller: 304 Stainless Steel Screw: 316 Stainless Stell

Motor:

Full Oil Permanent Magenet Brushless DC Motor (Without Hall)
Controller: 32bit MCU/FOC/Sine Wave Current/MPPT
Controller Shell: Die-cast Aluminum (IP67)
Time of Warranty: 3 years
Performance Chart
Model Flow (m3/h) 0 1.2 2.4 3.6 4.8 6.0 7.2 8.4 9.6 10.8 13.2 14.4 15.0
CSS4-15-38-D72-1000 Head(m) 39 35 30 28 26 23 21 20 17 15 9 2 0
CSS4-6.6-158-D90-1300 160 140 70 50 30 1
CSS4-10-100-D90-1350 106 75 55 45 35 30 25 15 10 1
Model Flow (m3/h) 0 4.5 9.9 15.3 21.2 24.3
CSS4-25-25-D72-1000 Head(m) 26 20 15 28 26 3
Pump Performance
Model Power Voltage Voltage Range Max Flow Max Head Outlet Outline
CSS4-15-38-D72-1000 1000W 72 VDC 46-100 VDC 15 m3/h 38 M 2 4 in
CSS4-25-25-D72-1000 1000W 72 VDC 46-100 VDC 25 m3/h 25 M 3 4 in
CSS4-6.6-158-D90-1300 1300W 90 VDC 48-120 VDC 6.6 m3/h 158 M 1.5 4 in
CSS4-10-100-D90-1350 1350W 90 VDC 48-120 VDC 10 m3/h 100 M 2 4 in

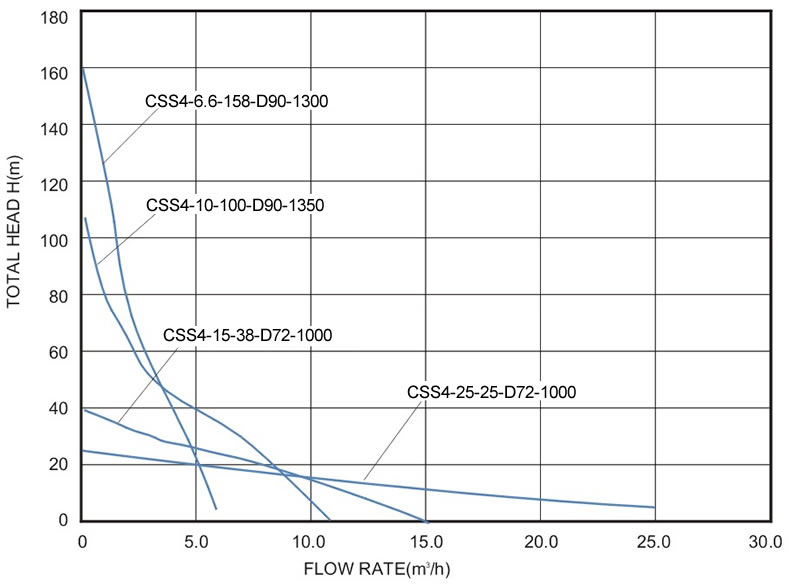

Curve
