4inch Helical Rotor Solar Power Submersible Pumps
Material of Parts
Outlet: Stainless Stell Pump Body:Stainless Stell
Motor Body:Stainless Stell Bearing: NSK
Helical Rotor & Screw: 316 Stainless Stell

Motor:

Full Oil Permanent Magenet Brushless DC Motor (Without Hall)

Controller: 32bit MCU/FOC/Sine Wave Current/MPPT
Controller Shell: Die-cast Aluminum (IP67)
Time of Warranty: 3 years

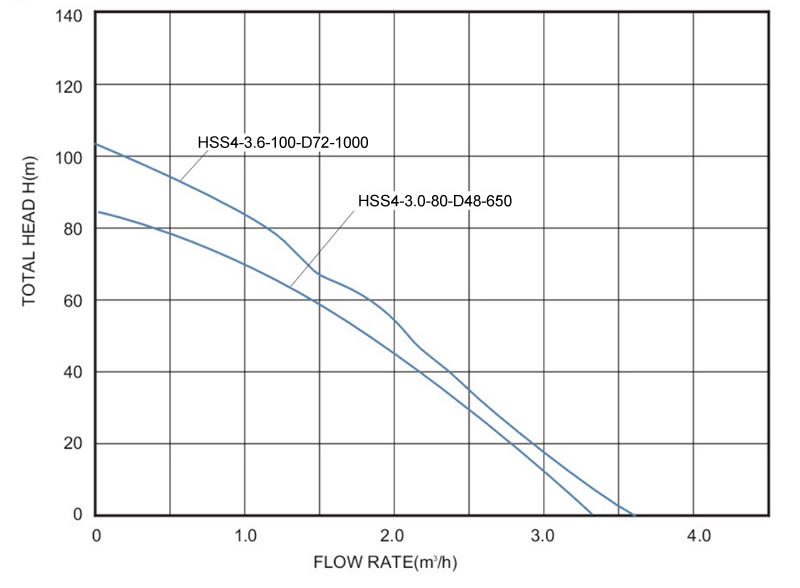

Performance Chart
Model Flow (m3/h) 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0 3.3 3.6
HSS4-3.0-80-D48-650 Head(m) 83 80 75 70 60 55 50 40 30 20 10 0
HSS4-3.6-100-D72-1000 105 100 90 85 80 70 60 50 40 30 20 10 0
Pump Performance
Model Power Voltage Voltage Range Max Flow Max Head Outlet Outline
HSS4-3.0-80-D48-650 650W 48 VDC 36-80 VDC 3 m3/h 80 M 1 4 in
HSS4-3.6-100-D72-1000 1000W 72 VDC 46-100 VDC 3.6 m3/h 100 M 1 4 in
