Solar Power Vortex Pumps
Material of Parts
Outlet/Intlet: Plastic Pump Body:Plastic
Motor Body:Die-cast Aluminum Bearing: NSK
Impeller: Plastic Screw: 316 Stainless Stell

Motor:Permanent Magenet Brushless DC Motor (Without Hall)

Controller: 32bit MCU/FOC/Sine Wave Current/MPPT
Controller Shell: Die-cast Aluminum (IP67)
Time of Warranty: 3 years
Performance Chart
Model Flow (m3/h) 0 3.5 7.0 10.5 14 17.5 21 24.5 30.1
PP-17-15-D48-500 Head(m) 17 15 12 7 5 2
PP-21-19-D72-900 19 17 16 15 13 9 5 2
PP-31-19-D72-1200 20 18 16 15 14 16 10 4 3
Pump Performance
Model Power Voltage Voltage Range Max Flow Max Head Max Suct Intlet Outlet
PP-17-15-D48-500 500W 48 VDC 36-80 VDC 17 L/Min 15 M 5 M 48 in 50 in
PP-21-19-D72-900 900W 72 VDC 46-100 VDC 21 L/Min 19 M 6 M 48 in 50 in
PP-31-19-D72-1200 1200 W 72 VDC 46-100 VDC 31 L/Min 19 M 6 M 60 in 63 in

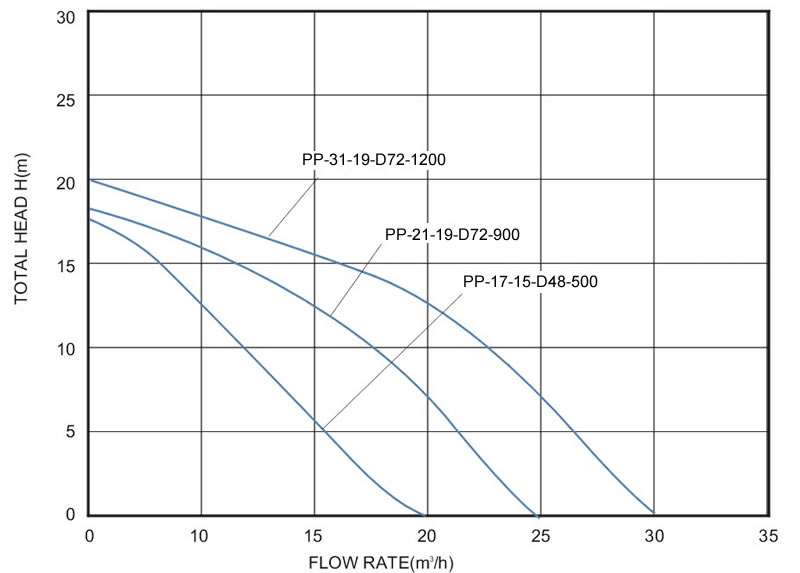

Curve
