Solar Power Surface Centrifugal Pumps
Material of Parts
Outlet: 304 Stainless Stell Pump Body:304 Stainless Stell
Motor Body:304 Stainless Stell Bearing: NSK
Impeller: 304 Stainless Steel Screw: 316 Stainless Stell

Motor:Permanent Magenet Brushless DC Motor (Without Hall)

Controller: 32bit MCU/FOC/Sine Wave Current/MPPT
Controller Shell: Die-cast Aluminum (IP67)
Time of Warranty: 3 years



Our Solar Surface pumps using stainless steel and die-cast aluminum, stable and long lifetime, Surface Pumps are widely used in agricultural irrigation and domestic water, since the suction is only eight meters, it can not pump water from deep wells.



Because of use solar energy, when sunlight is available, the Solar controller matches maximum efficiency of solar power to the pump, the pump will continuously have to start working very economical, no cost.

Performance Chart
Model Flow (m3/h) 0 0.55 1.61 2.89 4.06 5.13 6.67
SCP-6.6-32-D72-750 Head(m) 33 30 25 20 15 10 3.2
Pump Performance
Model Power Voltage Voltage Range Max Flow Max Head Max Suct Intlet Outlet
SCP-6.6-32-D72-750 750W 72 VDC 48-100 VDC 125 L/Min 32 M 8 M 1.25 in 1 in

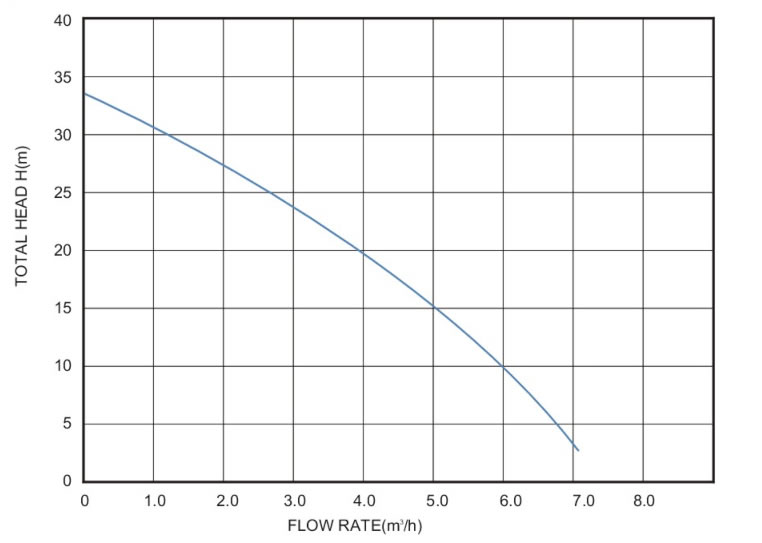

Curve
